A bedroom floor plan becomes useful when it shows movement as well as furniture. The wardrobe may fit against the wall, yet an open drawer can meet the bed frame or block the space where you stand to dress. Test the room through ordinary actions before committing to the layout.
Use the plan to compare arrangements, then confirm the preferred one in the actual room. A drawing can reveal a collision quickly, but it cannot fully reproduce personal reach, bulky bedding or the feel of a narrow route.
Draw the fixed features first
Measure the room and add the bedroom door, windows, skirting projections, alcoves and other fixed features. Record radiator and socket positions so they are considered in the layout. Keep any manufacturer-required clearances available for the furniture and equipment involved.
Choose a scale you can use consistently. At 1:20, one metre in the room is five centimetres on the drawing. A hypothetical 120cm-wide cabinet becomes a 6cm-wide shape. Label the real dimensions beside the drawing so a scale mistake is easier to spot.
If using graph paper, write down what one square represents. If using a digital tool, check that dimensions refer to the real room rather than an automatically resized image.
Make separate furniture shapes
Draw or cut out the bed, wardrobe, chest and bedside cabinets using their full external dimensions. Include projecting handles or headboards where they affect the route. Move the shapes between possible positions rather than redrawing the whole room each time.
Add a second outline for each moving part. Use the product's door and drawer information to establish its working area. A sliding wardrobe needs access to its exposed sections even though its doors do not swing into the room.
Run four everyday scenarios
| Scenario | Show on the plan |
|---|---|
| Getting dressed | Open storage and the position where you stand. |
| Putting laundry away | A basket, open drawers and your route between them. |
| Changing the bed | Access around the bed and a place for spare bedding. |
| Packing a suitcase | The open case and access to the clothing needed. |
Check combinations that actually happen together. Two drawers on opposite sides of the room may never need to stay open at once. A wardrobe door and the drawer directly beneath its opening may interact every day. Prioritise the conflicts that affect real use.
A worked drawer calculation
Suppose a hypothetical chest is 45cm deep and its drawer projects a further 35cm when open. The furniture then occupies 80cm from the wall in that state. If the opposite bed edge is 130cm from the wall, 50cm remains between the open drawer and the bed.
That remaining figure is a measurement, not a recommendation or a compliance standard. Test whether it is usable for the person and action involved, and follow applicable product requirements. You may decide the drawer can be reached but that there is no comfortable place to stand with a laundry basket.
Try rotating or relocating the chest on the plan. Then repeat all four scenarios, because solving the drawer conflict may create a new problem with the bedroom door.
Confirm the plan at full size
Mark the shortlisted footprints on the floor using a removable method suitable for its finish. Use safe temporary markers for the open positions. Walk the normal route and rehearse the actions with an empty laundry basket or suitcase.

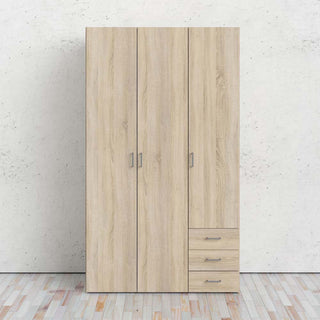

For a wardrobe combining doors and drawers, investigate a named example such as the Space 3 Door 3 Drawer Wardrobe in Oak Effect. Verify its full operating dimensions rather than inferring them from its title.
Compare the rest of the bedroom furniture collection against the same plan. Keep a dated copy with the chosen product references, so the final order and assembly position follow the layout you tested.
